Connect directly to any XR440 Data Logger input channel. All probes utilize a precision 30k ohm thermistor with 0.1 deg. C interchangeability. Up to four temperature probes can be connected to one XR440 Data Logger. For temperatures up to 260°C, a Platinum RTD Probe is available. For thermocouples, plug-in Thermocouple Modules are available.

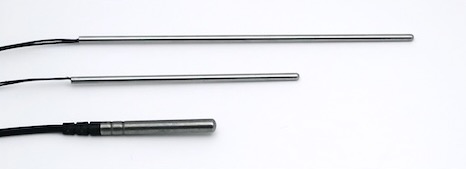

All Pace PT900 series Temperature Probes have the following features:
Epoxy tip with parallel 24 gage, PVC insulated leads (parallel bonded). Probe dimensions: 0.127" diameter, 0.37" length. For general purpose temperature measurement. Not for continuous immersion in water. (Mineral or silicon oil OK).
| Temperature range: | -50 to 105°C (-58 to 221°F) continuous duty |
| Lead length: | 4 feet (1.2 meters) |
| Interchangeability: | ±0.1°C from 20 to 45°C (68 to 113°F) |
| Total system accuracy (XR440 set for 12 bit resolution): | ±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 2.5 seconds |

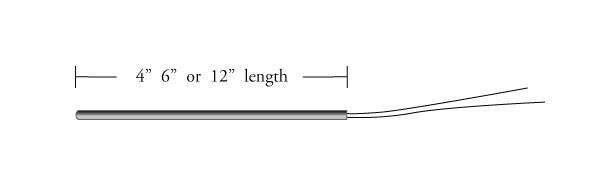

Closed end 1/8 inch diameter stainless steel tube. Available in three lengths: 4 inch, 6 inch and 12 inch. Teflon insulated 24 gage leads. Suitable for liquid or gaseous immersion, refrigeration and general temperature applications. Can be inserted into a 'Pete's Plug'. A bored-through compression fitting is available (see below).
| Temperature range: | -50 to 120°C (-58 to 248°F) continuous duty |
| Intermittent maximum temperature: | 150°C (302°F) |
| Lead length: | 3 feet (0.9 meters) |
| Interchangeability: | ±0.1°C from 0 to 70°C (32 to 158°F) |
| Total system accuracy (XR440 set for 12 bit resolution): | ±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 3.0 seconds |
| PT916 Temperature Probe - Stocked models | ||
| Part Number | Stainless Steel Sheath Length | Price |
| PT916-4 | 4 inches (102 mm) | $44. |
| PT916-6 | 6 inches (152 mm) | $46. |
| PT916-12 | 12 inches (305 mm) | $52. |
Bored-through stainless steel compression fitting for PT916 probe. 1/8 NPT male threads. 1.2 inches in length (30.5 mm).
Closed end stainless steel tube, 3/16" dia. by 1" long, with 20 foot cable. Cable is parallel bonded 24 gage, PVC insulated leads. Suitable for general temperature applications.
| Temperature range: | -50 to 105°C (-58 to 221°F) continuous duty |
| Lead length: | 20 feet (6.1 meters) |
| Interchangeability: | ±0.1°C from 0 to 70°C (32 to 158°F) |
| Total system accuracy (XR440 set for 12 bit resolution): | ±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 3.8 seconds |
Closed end stainless steel tube, 3/16" dia. by 1" long, with 20 foot cable. Polyolefin jacket bonded to probe and cable to form a moisture-proof barrier. Cable is parallel bonded 24 gage, PVC insulated leads. Suitable for soil temperature applications and wet environments.
| Temperature range: | -50 to 105°C (-58 to 221°F) continuous duty |
| Cable length: | 20 feet (6.1 meters) |
| Interchangeability: | ±0.1°C from 0 to 70°C (32 to 158°F) |
| Total system accuracy (XR440 set for 12 bit resolution): | ±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 4 seconds |
Closed end stainless steel tube, 1/4" dia. by 2" long, with 20 ft (6.1 meters) shielded cable. Rugged 0.19 inch (4.9mm) dia. probe cable. Cable has sunlight resistant black PVC outer jacket. Conductors are 22 gage. Suitable for liquid immersion, direct burial in soil and general temperature monitoring applications requiring a rugged probe and cable.
| Temperature range: | -50 to 105°C (-58 to 221°F) continuous duty |
| Cable length: | 20 feet (6.1 meters) |
| Interchangeability: | ±0.1°C from 0 to 70°C (32 to 158°F) |
| Total system accuracy (XR440 set for 12 bit resolution): | ±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 5 seconds |
PT510 / PT520 Platinum RTD Temperature Sensors
Price: PT520: $67. (260 degree C / 500 degree F max. temp.)
PT510: $46. (200 degree C / 392 degree F max. temp.)
User's can easily splice extension cable to any of the above probes. We recommend using copper 24 gauge two-conductor stranded cable for cable extensions of up to 100 ft. (30 meters). For longer extensions, use 22 gauge two-conductor stranded cable. Acceptable methods of splicing sensor leads to extension cable include wire nuts, crimp connectors, hand twisting and taping, or solder. For cable runs longer than 20 feet, we recommend using shielded cable (Belden 9501 or equivalent).
Multi-channel Temperature Data Logging
XR440 Data Logger, Description and Pricing
XR440 Catalog and Price
List PDF: 2 MB / 16 pages
