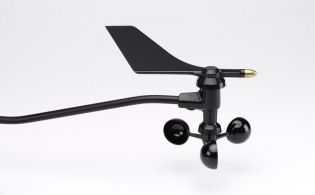

The WSD-100 can withstand hurricane-force winds, yet is sensitive to a very light breeze. It features a hand-balanced wind direction vane for optimal stability and accuracy. The wind speed signal connects directly to one or two pulse inputs of an XR5-SE Data Logger. One pulse channel logs average wind speed, and a second pulse channel may be used to record peak wind speed. The wind direction signal connects to an XR5 analog input. No external power is required. The WSD-100 features sealed stainless steel ball bearings for long life, and includes 40 feet (12 meters) of attached cable. Typical mounting hardware is included for mounting to a pipe, wooden post, antenna mast, or similar structure. Some assembly is required, and additional mounting hardware may be required, depending on the installation (see Installation Guide for details).
Note: This is the only Pace sensor not compatible with the XR440. This sensor only works with the XR5 Data Logger.
|
WSD-100 Specifications |
|
| Sensor Type | |
| Wind Speed | Wind cups with magnetic switch |
| Wind Direction | Wind vane and potentiometer |
| Potentiometer resistance | 20 k ohms typical |
| Attached Cable | |
| Length | 40FT (12 meter) |
| Type | 4-conductor, 26 AWG, unshielded |
| Termination | Stripped and tinned leads |
| Physical | |
| Wind Vane and Control Head | UV-resistant ABS |
| Wind Cups | Polycarbonate |
| Outer diameter of Wind Cup rotation | 5.9 inches (150 mm) |
| Anemometer Arm | Black-anodized aluminum |
| Overall Dimensions | 18.5" long x 7.5" high x 4.75" wide (470 x 191 x 121 mm) |
| Weight | 2 lbs. 15 oz. (1.332 kg) |
| Range | |
| Average and Peak Wind Speed | 0 to 175 mph (150 knots, 78 m/s, 280 km/hr) |
| Stall Speed | 2 mph |
| Wind Direction | 0° to 360° |
| Accuracy | |
| Wind Speed | ±5% |
| Wind Direction | ±7° |
| Resolution | |
| Wind Speed | 0.1 mph |
| Wind Direction | 0.1° (0° to 360°) |
WSD-100 Installation Guide [PDF File, 464 kbytes, posted Feb 12, 2011]
