EC24 Low Profile Weatherproof Case for XR440 Data Logger

  • Protects XR440 Data Logger in outdoor or hostile environments.
  • Quick release latch.
  • Two weatherproof cable fittings.
  • NEMA 4X / IP65 protection.
  • Available in Black or Yellow

Low Profile Weatherproof Case for XR440 Data Logger

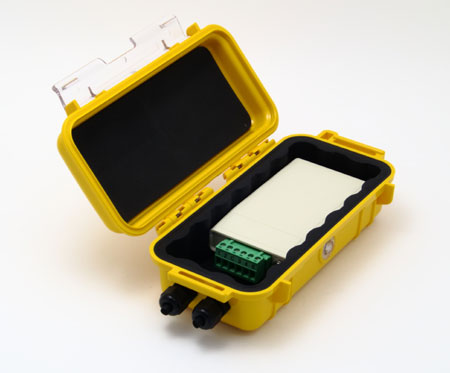

Rugged molded case withstands all weather conditions.  Features a hinged cover and quick release latch.  The EC24's rubber liner doubles as a continuous cover seal.  Two feed-through cable fittings are installed on end of case. Fittings accept cable diameters up to 0.26" (6.5 mm).

EC24 Weatherproof Case for XR440 Data Logger

Other Sizes Available: Cases for XR440 Data Logger

Captive communication cable (-IC option):

Cable is permanently routed through one cable fitting (only one fitting is available for signals or sensors). Allows data transfers to computer without opening cover.  Cable extended 6ft from case.  Cable end has a watertight cap which mates with IC209 Interface Cable.

Outfitted for Wireless Link (-BP option):

Case configured to house XR440 Data Logger and battery powered Wireless Link.  Includes removable battery holder for AA size cells and short (8") version of IC209 Cable (IC209-S).  Order Wireless Link separately.

EC24 Weatherproof Case

Overall size: 8.1" x 3.9" x 2.5" high (206 x 99 x 63 mm)
Weatherproof cable fittings: Two
Weight: 9.6 oz., 272 grams
Protection rating: NEMA 4X / IP65

Available Models Part Number Price
Yellow case for XR440 Data Logger EC24-YEL $50.

same with captive comm. cable

EC24-YEL-IC $70.

same with battery holder and IC209-S Cable (short version) for Wireless Link

EC24-YEL-BP $73.

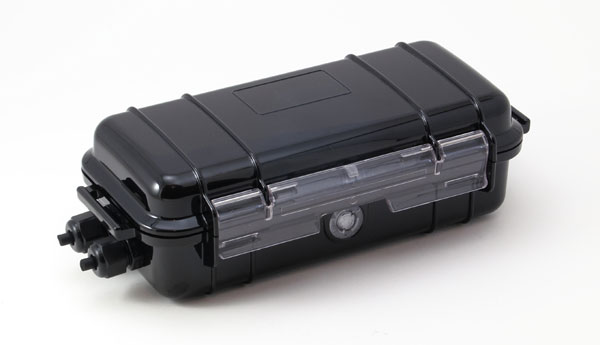

Black case for XR440 Data Logger EC24-BLK $50.

same with captive comm. cable

EC24-BLK-IC $70.

same with battery holder and IC209-S Cable (short version) for Wireless Link

EC24-BLK-BP $73.
