EC44 Compact Weatherproof Case

  • Protects XR440 Data Logger in outdoor or hostile environments.
  • Quick release latches.
  • Six weatherproof cable fittings.
  • NEMA 4X / IP65 protection.
  • Compact Size

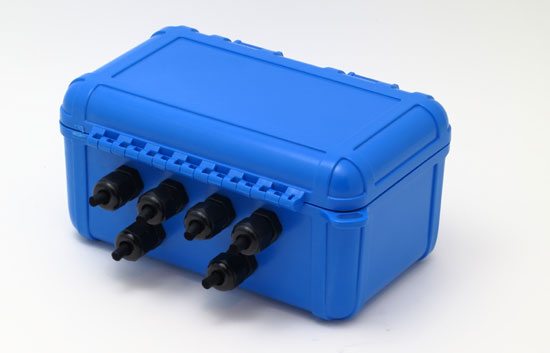

EC44 Weatherproof Case for XR440 Data Logger

Rugged molded case withstands all weather conditions.  Features a hinged cover, continuous neoprene o-ring seal and two quick release latches.  Six feed-through cable fittings are installed on side of case.  Fittings accept cable diameters up to 0.25" (6.3 mm).

Other Sizes Available: Cases for XR440 Data Logger

Captive communication cable (-IC option):

Cable is permanently routed through one cable fitting on case.  Allows data transfers to PC without opening cover.  Cable extends 5 ft (1.5 meters) from case.  Cable end has a watertight cap.  Mates with IC209 Interface Cable.

EC44-IC Case with Captive Communications Cable for XR440 Data Logger

EC44-IC (Case with captive communications cable)

Outfitted for Wireless Link (-BP option):

Case is configured to house the XR440 Data Logger and battery powered Wireless Link.  Includes removable battery holder for C size cells, mounting provisions for Wireless Link, and short (8") version of IC209 Cable (IC209-S).  Order Wireless Link separately.

EC44 Weatherproof Case

Overall size: 6.5" x 5" x 3.25" high (165 x 127 x 83 mm)
Weatherproof cable fittings: Six (6)
Weight: 11 oz., 312 grams
Protection rating: NEMA 4X / IP65

Available Models Part Number Price
Case for XR440 Data Logger EC44 $59.

same with captive comm. cable

EC44-IC $79.

same with battery holder and IC209-S Cable (short version) for Wireless Link

EC44-BP $93.

XR440 Data Logger
