EC506 Heavy Duty Weatherproof Case

  • Protects XR440 Data Logger in outdoor or hostile environments.
  • Quick release latches.
  • NEMA 4X / IP65 protection.
  • Can be padlocked for security.
  • Six weatherproof cable fittings.
  • Customizable foam interior.

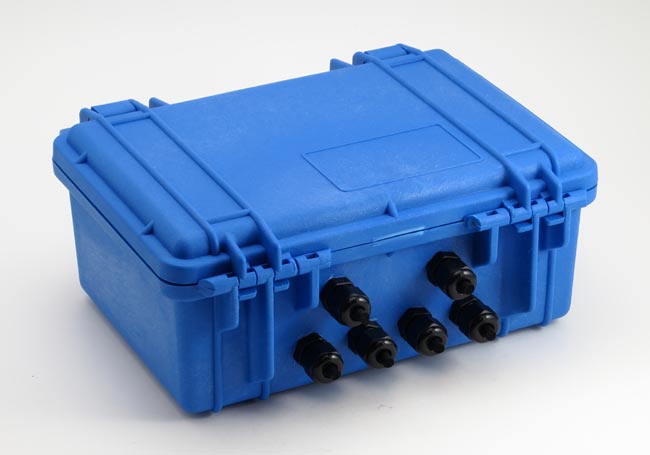

EC506 Heavy Duty Weatherproof Case for XR440 Data Logger

Rugged molded case withstands all weather conditions.  Cover is hinged on one side and has a continuous neoprene o-ring seal and quick release latches.  Includes six feed-through cable fittings installed on side of case.  Fittings accept cable diameters up to 0.25" (6.3 mm).  Customizable foam interior and fold-up carrying handle.  Can be padlocked for security.

Other Sizes Available: Cases for XR440 Data Logger

Captive communication cable (-IC option):

Cable is permanently routed through one cable fitting on case.  Allows data transfers to PC without opening cover.  Cable extends up to 5 ft (1.5 meters) from case (user adjustable).  Cable end has a watertight cap.  Mates with IC209 Interface Cable.

EC506 Weatherproof Case with attached cable option for XR440 Data Logger

EC506-IC (Case with captive communications cable)

Outfitted for Wireless Link (-BP option):

Case is configured to house the XR440 Data Logger and battery powered Wireless Link.  Includes removable battery holder for D size cells, mounting provisions for Wireless Link, and short (8") version of IC209 Cable (IC209-S).  Order Wireless Link separately.

EC506 Weatherproof Case

Overall size: 8.3" x 6.6" x 3.6" high (210 x 168 x 92 mm)
Weatherproof cable fittings: Six
Weight: 22 oz., 607 grams
Protection rating: IP65 / NEMA 4X

Available Models Part Number Price
Case for XR440 Data Logger EC506 $68.

same with captive comm. cable

EC506-IC $88.

same with battery holder and IC209-S Cable (short version) for Wireless Link

EC506-BP $106.

same with IC and BP options

EC506-BP-IC $126.
