PM-1 Pulse Module for XR440 Data Logger

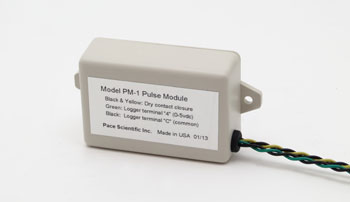

PM-1 Pulse Module

Connects directly to channel 4 of XR440 Data Logger (this is the only XR440 accessory which connects to a specific channel). Internal lithium battery powers module for over 10 years.  Module has four color coded 12" leads.  Two leads connect to a contact closure (power meter , gas meter, rain gage, etc.) and two leads connect to the XR440 Data Logger.

For applications that need to log up to three pulse signals, see the XR5-SE Data Logger.

Specifications: PM-1 Pulse Module

Maximum pulse rate 5 per second *
Minimum contact closure time 30 millisecond
Operating temperature -25 to 70°C (-13 to 158°F)
Size 2.3" x 0.85" x 1.5" (59mm x 22mm x 38mm)
Enclosure Molded thermoplastic housing
Leads Four color coded 24 gauge leads, 12" length

Price:  $115.

* For logging pulse rates up to 900 Hz, see the XR5-SE Data Logger
