High Accuracy Temperature Probes
Connect directly to any Pace Data Logger. All probes utilize a precision 30k ohm thermistor with 0.1 deg. C interchangeability.
PT900 Series Temperature Probes
Connect up to eight probes to the XR5-SE Data Logger, and up to four probes to the XR440 or XR450 Data Logger.
Common to all PT900 series Probes
- 0.1°C Interchangeability
- Resolution 0.02°C at 25°C
- No calibration required
- Probe cables may be extended using ordinary copper wire.

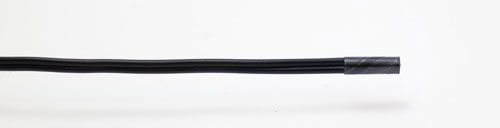

PT907
Epoxy tip with parallel 24 gage, PVC insulated leads (parallel bonded). For general purpose temperature measurement. Not for continuous immersion in water (mineral or silicon oil is OK).
| Temperature range | -50 to 75°C (-58 to 167°F) continuous
duty Intermittent duty to 110°C (230°F) |
| Lead length | 4 feet (1.2 meters) |
| Interchangeability | ±0.1°C from 20 to 45°C (68 to 113°F) |
Total system accuracy |
±0.15°C from 0 to 40°C ±0.3°C from -25 to 85°C |
| Time constant (typical) in stirred oil bath | 2.5 seconds |
| Probe dimensions | 0.127 inch diameter (3.23 mm), 0.37 inch length (9.4 mm) |
PT907 price: $25.
PT916

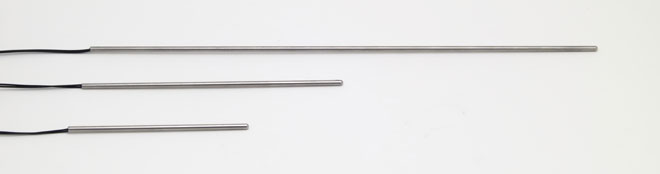

PT916 Probe, available in 4", 6" and 12" lengths
Closed end 1/8 inch diameter stainless steel tube. Teflon insulated 24 gage leads. Suitable for liquid or gaseous immersion, refrigeration and general temperature applications. Can be inserted into a 'Pete's Plug'. Available in three lengths: 4 inch (102 mm), 6 inch (153.4 mm) and 12 inch (305 mm). A bored-through compression fitting is available (see below).
| Temperature range | -50 to 75°C (-58 to 167°F) continuous duty Intermittent duty to 150°C (302°F) |
| Lead length | 3 feet (0.9 meters) |
| Interchangeability | ±0.1°C from 0 to 70°C (32 to 158°F) |
Total system accuracy |
±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 3.0 seconds |

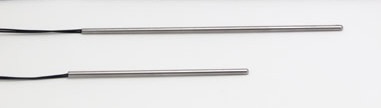

PT916 Temperature Probe
| Part No. | Sheath Length | Price |
|---|---|---|
| PT916-4 | 4 inches (102 mm) | $56. |
| PT916-6 | 6 inches (152 mm) | $60. |
CF916-1/8
Bored-through stainless steel compression fitting for PT916 probe. 1/8 NPT male threads. 1.2 inches in length (30.5 mm).
CF916-1/8 price: $20.

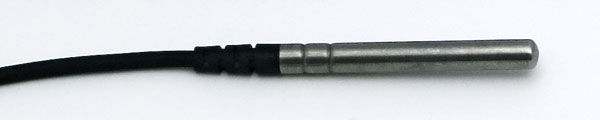

PT960
Rugged stainless steel probe 6 mm (0.236") diameter and 50 mm (approx 2 inch) length with 6.1 meter (20 ft) cable. TPE jacketed cable has diameter of 3.3 mm (0.13"), round cross section and 24 gage, polypropylene insulated leads. Suitable for immersion, HVAC, and soil burial applications. Probe's cable not recommended for immersion in fuels (fuel splashing on cable is OK).
| Temperature range | -40 to 100°C (-58 to 212°F) |
| Cable length | 20 feet (6.1 meters) |
| Interchangeability | ±0.1°C from 0 to 70°C (32 to 158°F) |
Total system accuracy |
±0.15°C from 0 to 40°C (±0.27°F from 32 to 104°F) ±0.3°C from -25 to 85°C (±0.55°F from -13 to 185°F) |
| Time constant (typical) in stirred oil bath | 6 seconds |
| IP (Ingress Protection) Rating: | IP68 |
PT960 price: $90.
Extension Cable
Extension cable can be spliced to any of the above probes. We recommend 24 gauge two-conductor stranded copper cable for extensions of up to 100 feet (30 meters). For longer extensions, 22 gauge cable is recommended. Acceptable splicing methods include wire nuts, crimp connectors, hand twisting and taping, or solder. For cable runs longer than 30 feet, we recommend using shielded cable (Belden 9501 or equivalent).
