P500 Barometric Pressure Sensor

Connect directly to any XR440 or XR5-SE data logger; no external power required.

Barometric Pressure Sensor, 5v powered with voltage output - Pace Scientific

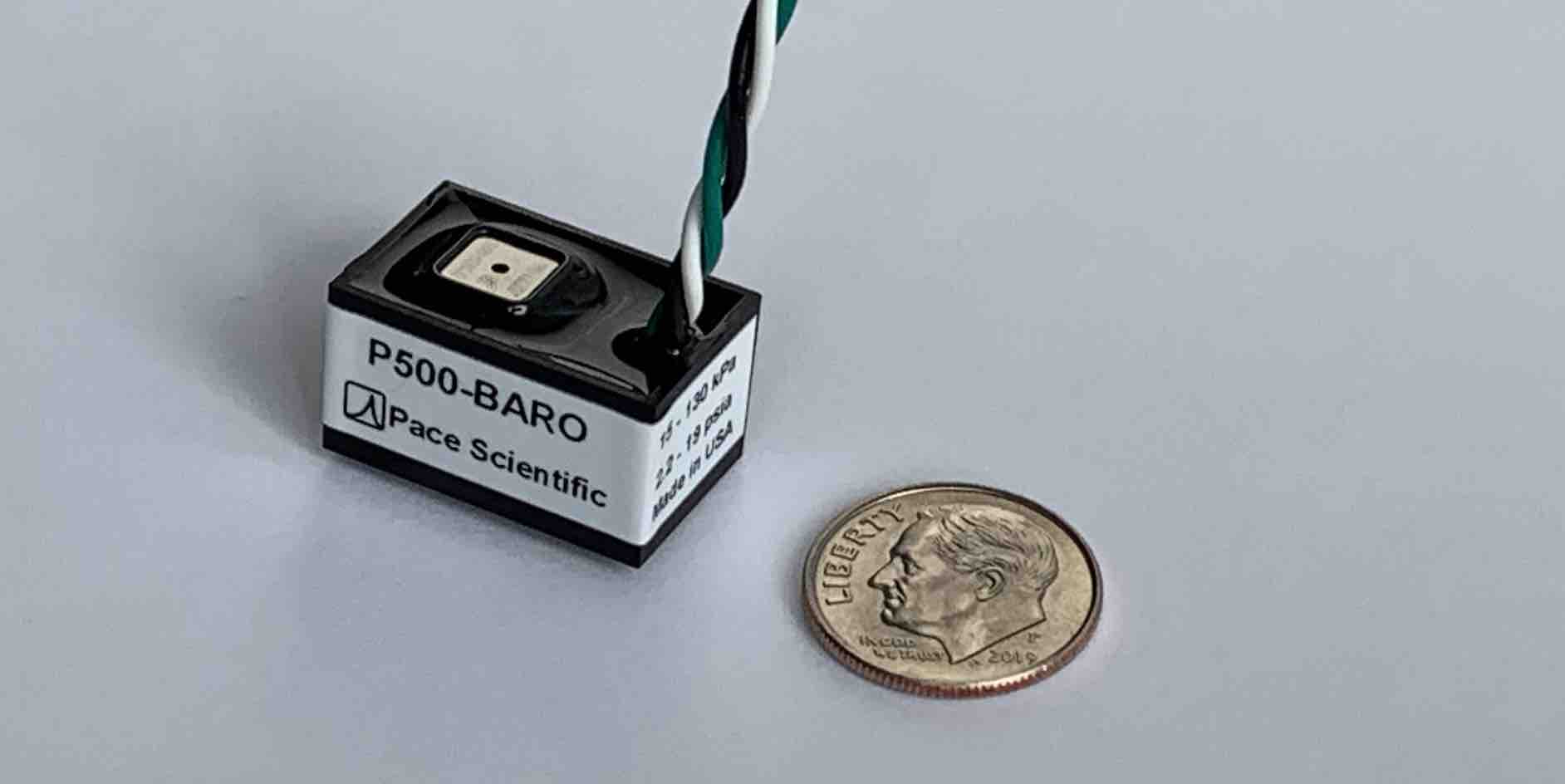

P500 Barometric Pressure Sensor

Applications include atmospheric and absolute pressure monitoring, weather stations, etc.

  • High Accuracy
  • Pressure Media: Moist or Dry Air or Inert Gas
  • Waterproof, Epoxy Encapsulated Housing
  • Wide Temperature Range
  • Miniature Size

P500 Specifications

Total Error Band, 0 to 85°C
(includes linearity, span and offset deviation, temperature and pressure hysteresis)
±1.5% of Span
Pressure Range: 150 to 1300 mbar
Resolution: See table below
Operating Temperature Range: -40 to 93°C (-40 to 200°F)
Compensated Temperature Range: -40 to 93°C (-40 to 200°F)
Output signal 0.2 to 4.7 Vdc (ratiometric to supply voltage)
Power requirement: 8 milliamps at 5 Vdc (provided by Pace logger)
Wiring:

White: E terminal of Pace logger (Power)

Green: Analog Input of Pace Logger (Signal)

Black: "C" terminal of Pace logger (Ground)

Maximum Pressure: 400 kPa / 58 psia
Weight: 0.3 oz. (8 grams)
Physical: Epoxy encapsulated thermoplastic housing, three twisted leads, 18" length.
Pressure Port: Port accepts 3/32" I.D. or 2.4 mm I.D. tubing.  Accepts 1/8" I.D. tubing with included adapter kit (details below).
Mounting Suggestions: Cable tie, Velcro® or double-sided adhesive tape.  Optional mounting base (see below).
Overall Size: 0.9" x 0.6" x 0.6" (23mm x 15mm x 15mm)

Included Tubing Adapter

Allows pressure connection to commonly available 1/8" I.D. tubing or 3.2 mm I.D. tubing.  Consists of 8" length of 3/32 I.D. tubing and a 3/32" I.D. to 1/8" I.D. nylon adapter fitting.

Measurement Resolution *

Units Range Resolution
kPa 15 to 130 0.03
psia 2.18 to 18.86 0.005
millibar 150 to 1300 0.3
inHg 4.43 to 38.38 0.01

*Using XR440 set to 12 bit, or XR5-SE.

Use any Pressure Scale

The P500 Sensor can read in any unit of pressure (kPa, millibar, etc.); Simply convert the sensor's scaling values using the XR440 Pressure Converter for the XR440 or the XR5 Pressure Converter for the XR5.

Extension cable

The 18 inch leads on the P500 Pressure Sensor may be extended up to 100 FT (30 meters) by the user using three conductor 22 or 24 gage cable.  In electrically noisy environments we recommend using shielded cable.

Power Limitation

Due to its 8 ma current draw, a maximum of 2 P500 Sensors may be powered by one XR440 Data Logger and a maximum of 3 P500 Sensors may be powered by one XR5-SE Data Logger.

Part No.  P500-BARO    Price: $140.

Accessories

Optional Mounting Base

Sensor press fits into base.  Neoprene rubber pads grip sensor securely.  Base has two 0.184 dia mounting holes spaced 1.375 inches center to center.  Maximum temperature rating of base: 75°C (167°F)

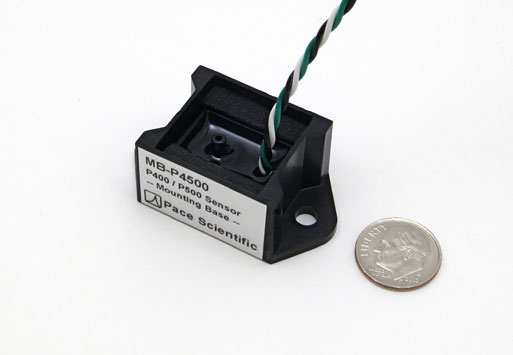

Optional Mounting Base for P500 Barometric Pressure Sensor

Part Nbr: MB-4500  Price: $12.00

Compatible tubing

Commonly available 1/8" I.D. or 3.2 mm I.D. plastic tubing is compatible with the P350 using the included tubing adapter.

Tubing stocked at Pace

Clear 3/32" I.D.  tubing connects directly to all P350, P400, P450 and P500 Sensors.  Temperature range -40°C to 74°C (-40°F to 165°F).  5/32" (4 mm) O.D.  Maximum pressure 43 PSI.  Available in 25 FT (7.6 meter) rolls.

Part Nbr: T-332-25FT  Price: $10.00  25 ft (7.6 meter) roll
