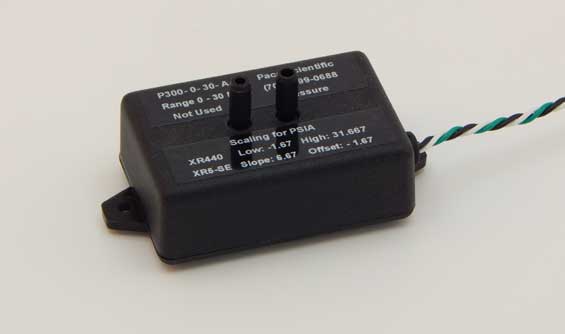

P300 Pressure Sensor, range 0-30 psia
For absolute pressure applications.
Compatible pressure media: dry air and inert gases: nitrogen, helium, neon, argon, krypton, xenon.
|Combined Linearity, Hysteresis & Repeatability:||±0.25%|
|Operating temperature range:||
-40 to 85°C (-40 to 185°F)
|Compensated temperature range:||
-20 to 85°C (-4 to 185°F)
|Total error band over compensated temperature range:||±2% of full scale.|
|Output signal||0.25 to 4.25 Vdc (ratiometric to supply voltage)||Power requirement:||5 Vdc, 3.5 ma (supplied by Pace Data Logger)|
White: 5 Vdc (power)
|Maximum Common Mode Pressure:||N/A - only one port is used|
|Proof Pressure:*||60 psi|
|Burst Pressure:||120 psi|
|Weight:||1.5 oz. (43 grams)|
|Physical:||Black Nylon housing with three 18" leads.|
|Pressure Ports:||Plastic fittings accept 1/8" I.D. tubing, or 3.2 mm I.D. tubing.|
|Mounting (two methods):||
1) Built-in magnet on base.
2) Two mounting ears with 0.118" dia. (3 mm) holes, 2.5" (63.5 mm) on center.
|Overall Size (includes mounting ears):||1.3" x 1.51" x 2.88" (33mm x 39mm x 73mm)|
* Exceeding Proof Pressure can result in sensor failure.
The leads on the P300 Pressure Sensor may be extended up to 100 FT (30 meters) by the user using three conductor 22 or 24 gage cable. In electrically noisy environments we recommend using shielded cable.
